FD RX-7 Rear Big Brake Guide – Standard Performance Kit Using OSC Caliper Adapters
Overview
This guide outlines the validated component configuration required to install the OSC Fabrication & Finishes Rear Caliper Adapter System on your Mazda RX-7 FD3S ('92-'02).
The Standard Performance Kit increases rear braking capability by allowing fitment of a motorsport-grade Wilwood caliper paired with a 12.72" rear rotor configuration.
⚠️ This setup deletes the factory rear parking brake.
⚠️ For off-road / racing use only.
What This Product Is
The OSC Rear Caliper Adapter is a precision CNC-machined bracket set engineered specifically for the FD3S rear upright geometry.
Each adapter is:
- Machined from 7075-T6 Aluminum
- CNC precision cut for dimensional accuracy
- Bead blasted for a uniform surface finish
- Anodized in matte black for corrosion resistance and durability
The adapters are designed to properly position a Wilwood Forged Superlite Internal caliper over a 12.72" rear rotor when paired with the validated components listed in this guide.
⚠️ This is NOT a universal bracket. It is engineered specifically for the '92-'02 Mazda RX7 FD3S.
What Is Included With the OSC Adapter Kit
- CNC-machined rear caliper adapters (Left & Right)
- Zinc-plated Mounting Hardware
What Is NOT Included
The following components must be sourced separately:
- Brake Calipers
- Brake Rotors
- Brake Pads
- Brake Lines and Fittings
For customers who prefer a complete solution, Ligma Performance will offer pre-configured component packages featuring the validated calipers, rotors, and supporting components listed in this guide.
(Insert link to Ligma when available)
Standard Performance Kit - Validated Components
The components below have been physically installed and verified for fitment with the OSC FD rear adapter system.
Only the parts listed in this section are currently validated.

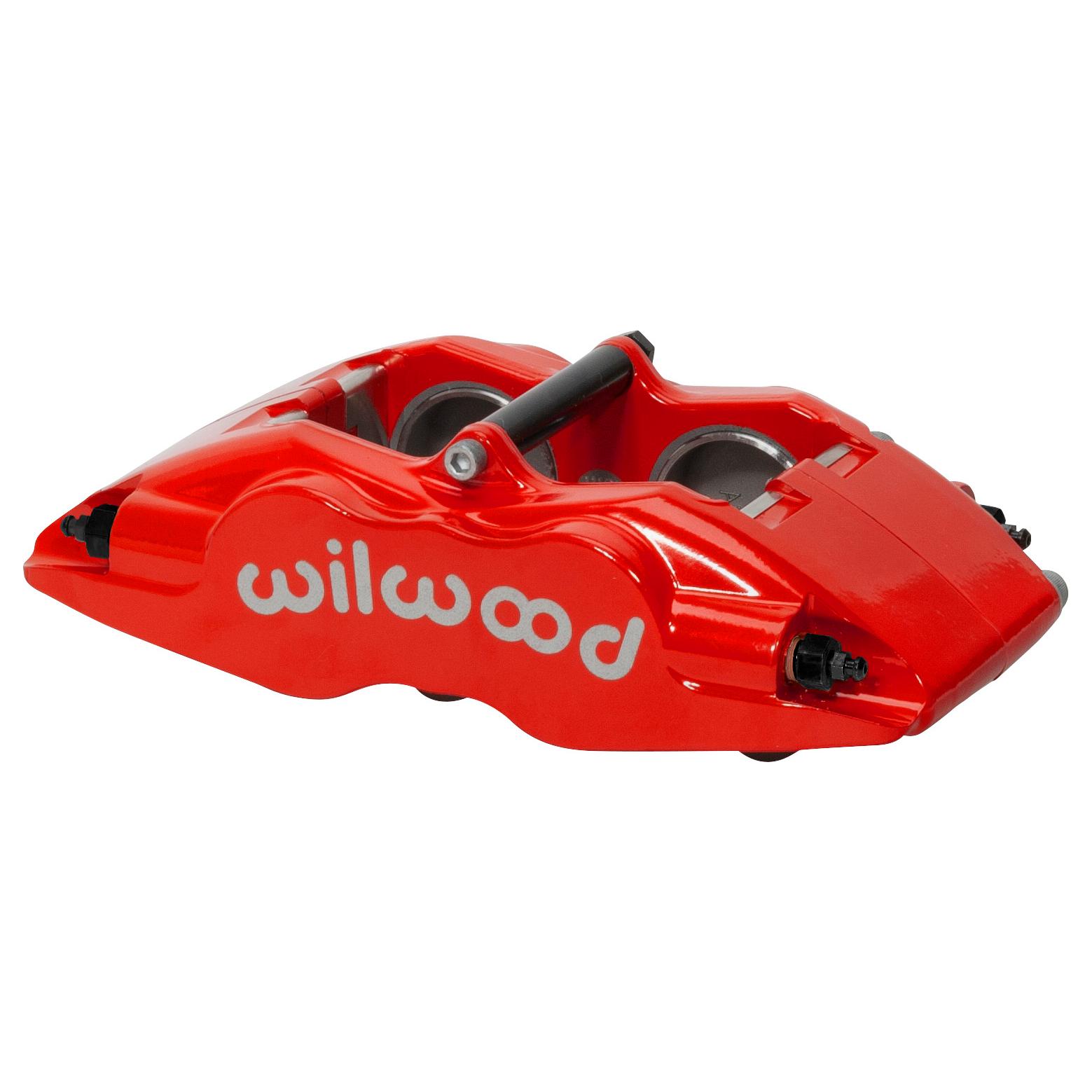

Brake Caliper
Wilwood Forged Superlite Internal - 0.81" Rotor Width
Validated Part Numbers:
- 120-11128 (Hard Anodized)
- 120-11128-BK (Black)
- 120-11128-RD (Red)
Brake Pads
Pad Shape: Wilwood 7420
Compound selection depends on vehicle use.

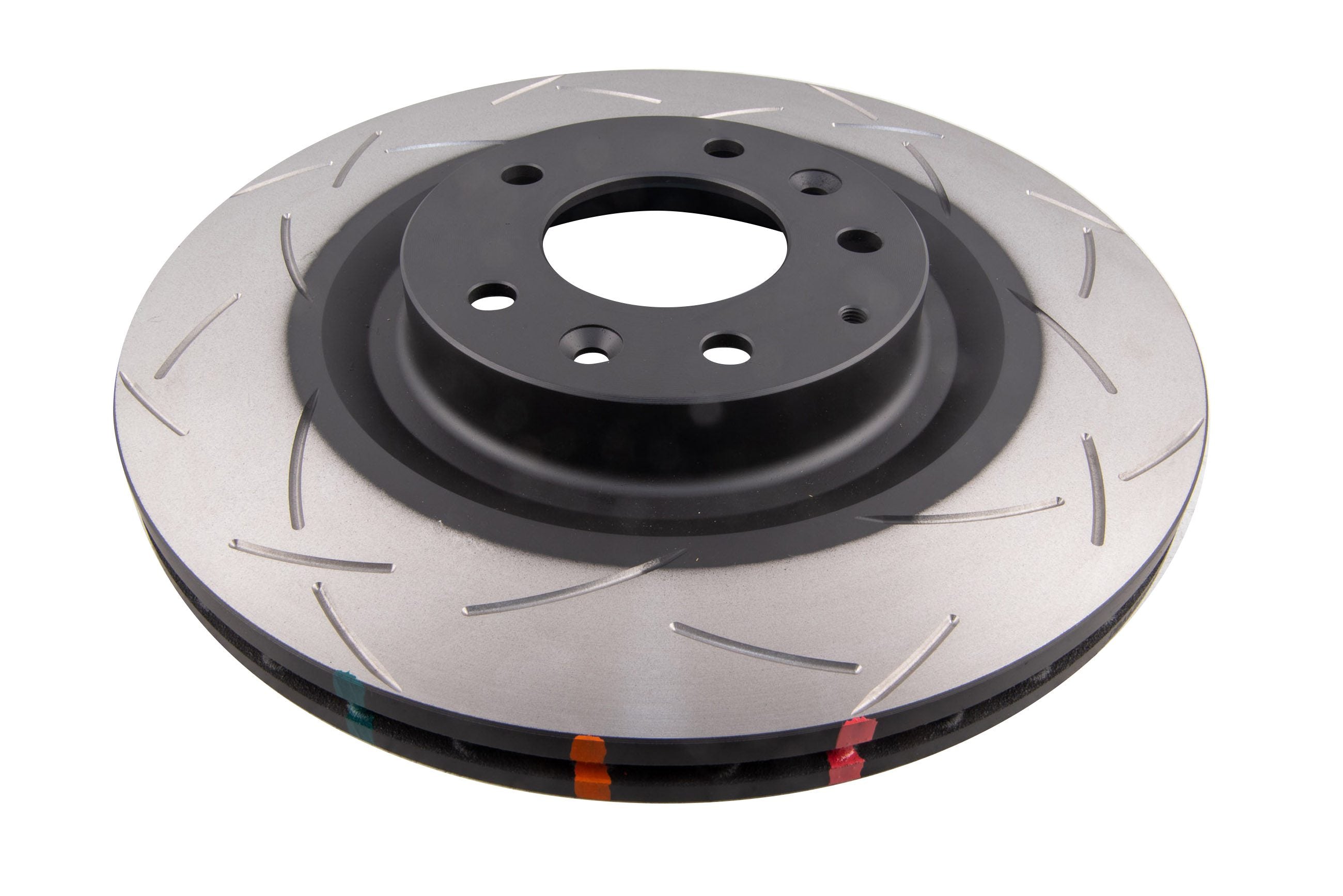

Brake Rotor
12.72" (323mm) Front Rotor from a '04-'11 Mazda RX-8 w/ Sport Suspension
Rotor Diameter: 12.72"
Compatible Rotor Width: .081"
Only this rotor configuration has been tested with the Standard Performance Kit.
Parking Brake
This configuration removed the OEM parking brake system.
No mechanical or electronic parking brake solution is available with the Standard Performance Kit.
⚠️ This kit is intended for off-road and motorsport use only.
Development Note:
OSC Fabrication & Finishes is currently developing a compatible electronic parking brake solution for the FD3S rear big brake system. Details, specifications, and release information will be announced separately.
Brake Lines & Fittings
Caliper Inlet: 1/8-27 NPT
Recommended Fitting: Wilwood 220-13125 (90* Elbow - 1/8"-27 NPT to -3AN)
Use high quality -3AN PTFE braided brake lines.
Proper routing and clearance verification is the installers responsibility.
Wheel Clearance
This upgrade increases rear brake size significantly.
Before final installation:
- Verify wheel barrel diameter clearance
- Verify spoke clearance
- Perform test fitment prior to final assembly
Wheel clearance varies by wheel design and offset.
Installation Notes
- Ensure caliper is centered over rotor.
- Confirm proper pad sweep alignment.
- Use supplied hardware only. Do not substitute mounting hardware.
- Apply high-strength thread locker (Loctite 271 | Red) on all adapter and caliper mounting fasteners.
- Clean all threads thoroughly before torquing fasteners.
Torque fasteners as follows:
- Adapter to Spindle (M10x1.25, Class 10.9): 45ft-lb (61Nm)
- Caliper to Adapter (7/16-14, Grade 8): 55-60ft-lb (75-81Nm)
Note: Hand Tools Only. Do not use an impact wrench.
Removal of fasteners installed with high-strength thread locker may require localized heat.
If frequent caliper removal is expected, steel thread inserts are recommended for long-term durability.
Fully bleed braking system before operation.
Professional installation is strongly recommended.
Summary
The Standard Performance Kit provides a validated rear big brake configuration for the '92-'02 Mazda RX-7 FD3S using proven Wilwood Components and a 12.72" rotor upgrade.
if you deviate from the listed components, fitment and performance are not guaranteed.
